A lightweight, stylish, and nimble bike for those looking for the perfect urban companion.
A lightweight, stylish, and nimble bike for those looking for the perfect urban companion.
Troxus

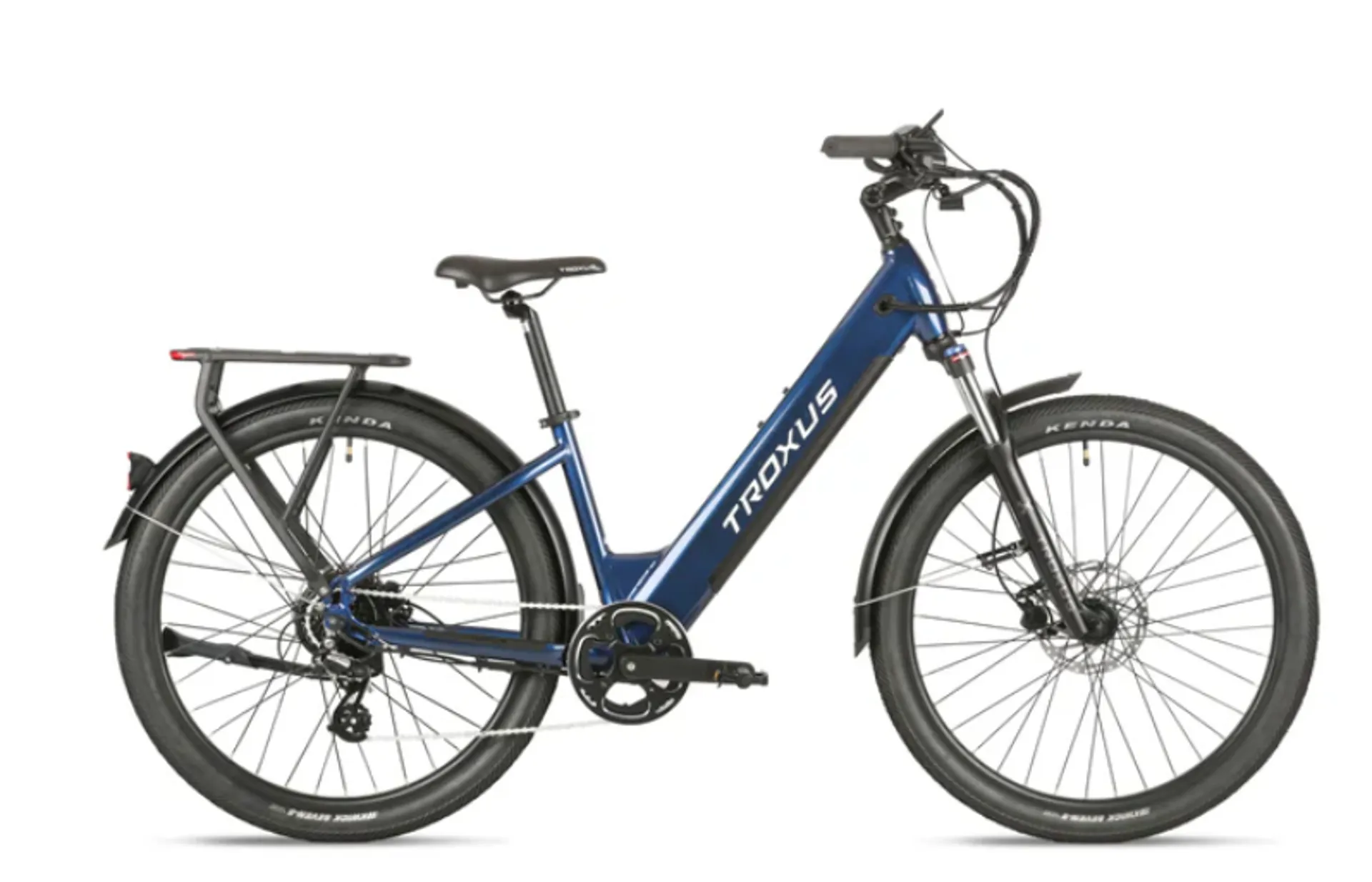

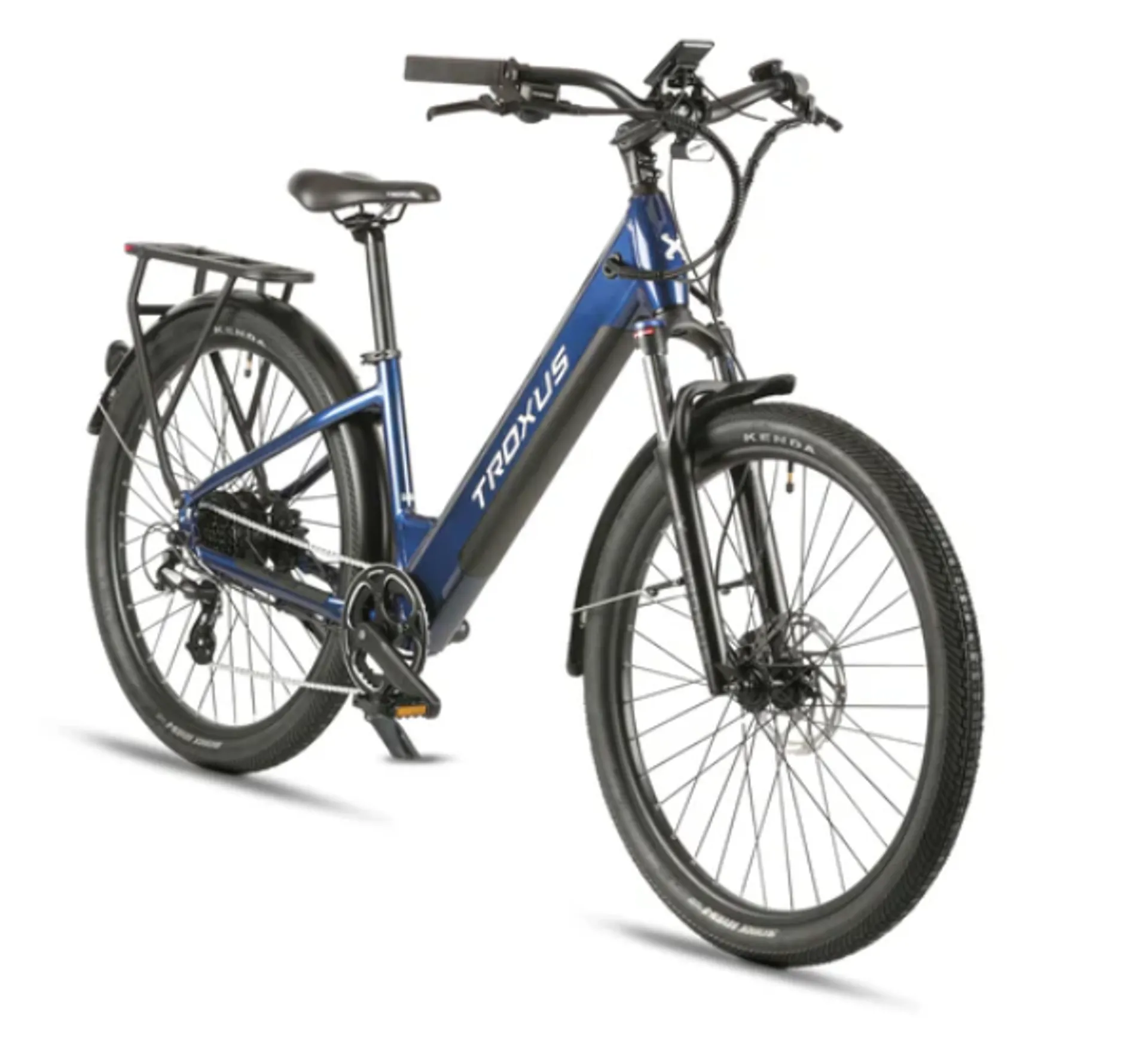

Troxus Trax Lite Step-Through in Blue 2024

$1,699.00
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Shipping & Collection Dates

Estimated Shipping & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Shipping & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Troxus Trax Lite Step-Through in Blue 2024

Season:2024

Brand:Troxus

Code:10870100blue

Smooth power and plenty of range, with the ability to switch from cadence to torque sensor on the fly, to suit your riding needs. The comfortable touchpoints make the Trax LT a joy to ride.

Stylishly Comfortable: Hand crafted, ultra-lightweight high stability alloy frame with suspension fork provides confidence-inspiring handling with bump-absorbing comfort.

Seamless Power And Riding Performance: Smooth Hub-Drive Motor of 50Nm max torque with switchable torque or cadence sensor technology. Ride the bike the way you want to ride.

Control, Convenience, and Safety: High-contrast, full color, Bluetooth screen gives you all the key data you need to know in an easy to read format.

Impressively Comfortable Touchpoints: Troxus Comfort Cockpit with adjustable stem, swept back handlebars, ergonomic grips, and plush saddle provide all day riding comfort.

Seamless Power And Riding Performance.

Smooth Hub-Drive Motor of 50Nm max torque with switchable torque or cadence sensor technology. Ride the bike the way you want to ride.

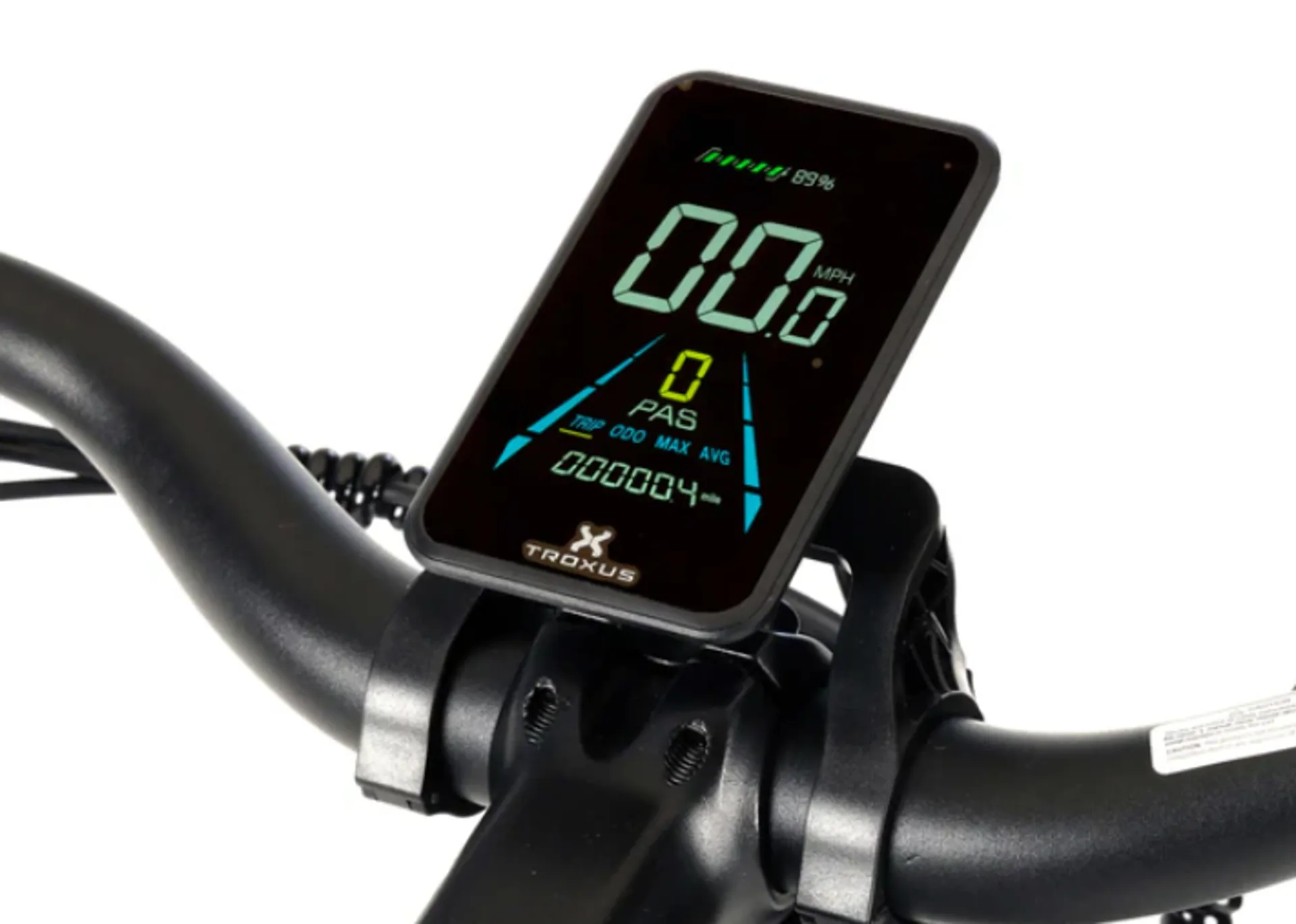

Control, Convenience, and Safety

High-contrast, full color, Bluetooth screen gives you all the key data you need to know in an easy to read format.


Impressively Comfortable Touchpoints.

Troxus Comfort Cockpit with adjustable stem, swept back handlebars, ergonomic grips, and plush saddle provide all day riding comfort.

Quality Components and Craftsmanship

Suspension Fork
75mm of front suspension improves both comfort and control on rough surfaces.

480Wh / 48V 10Ah Battery
Incredible range and reliability, built with Samsung® cells, for up to 55 miles on a single charge.


Shimano® 8-Speed Shifting
Never miss a shift and always have the gear you need to match your riding needs and terrain.

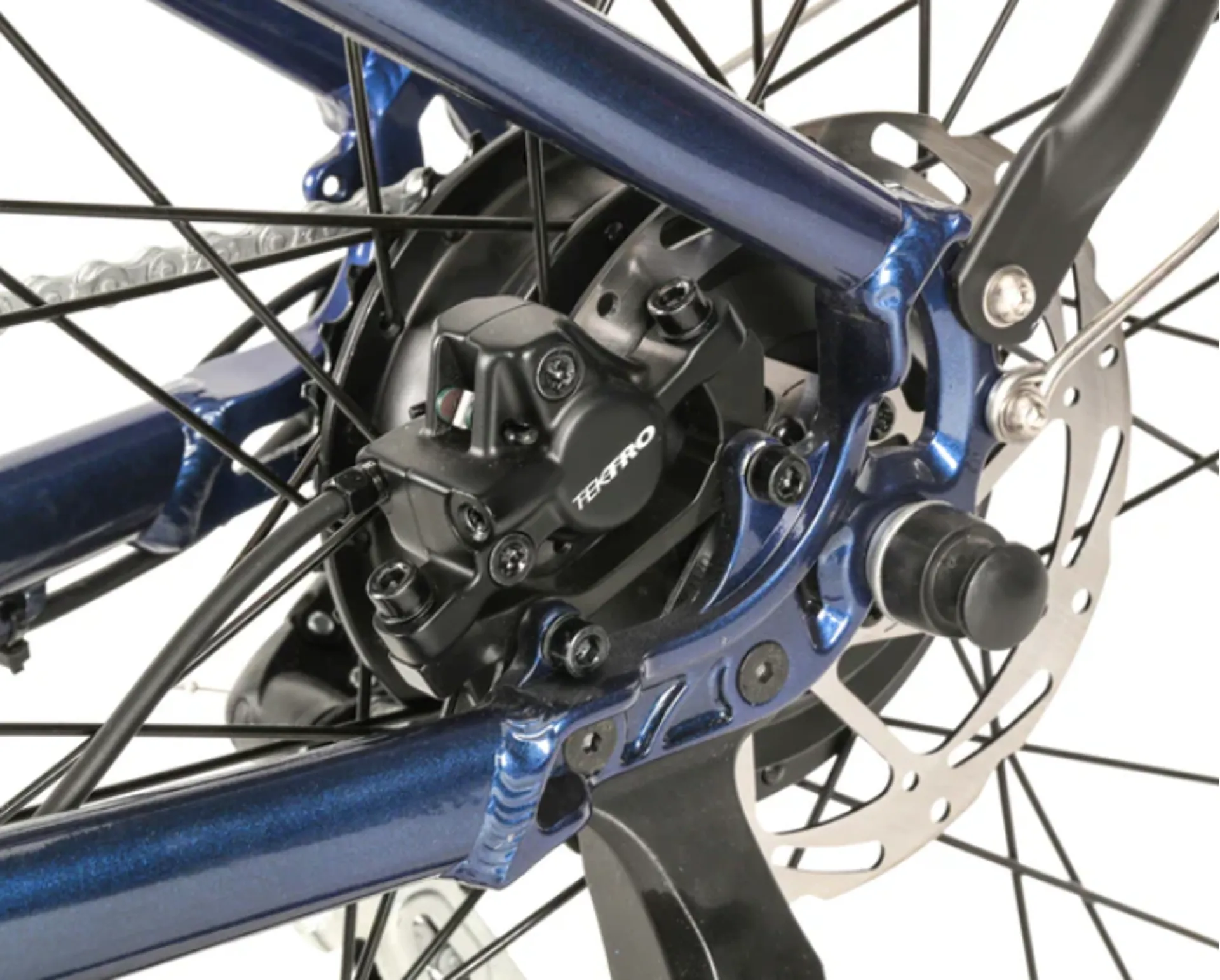

Tektro® Hydraulic Disc Brakes
Excellent stopping power and modulation for increased control and safety.

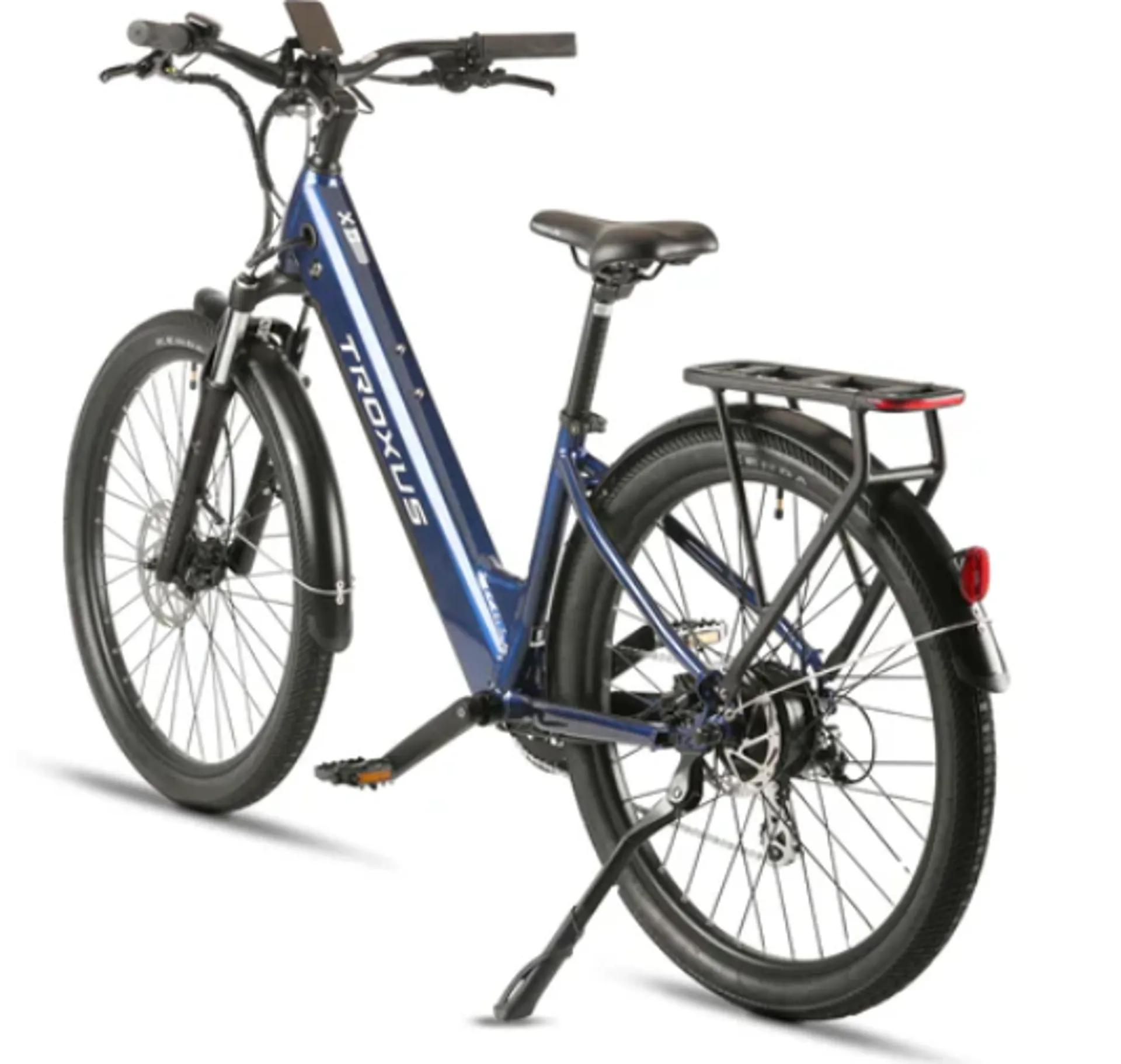

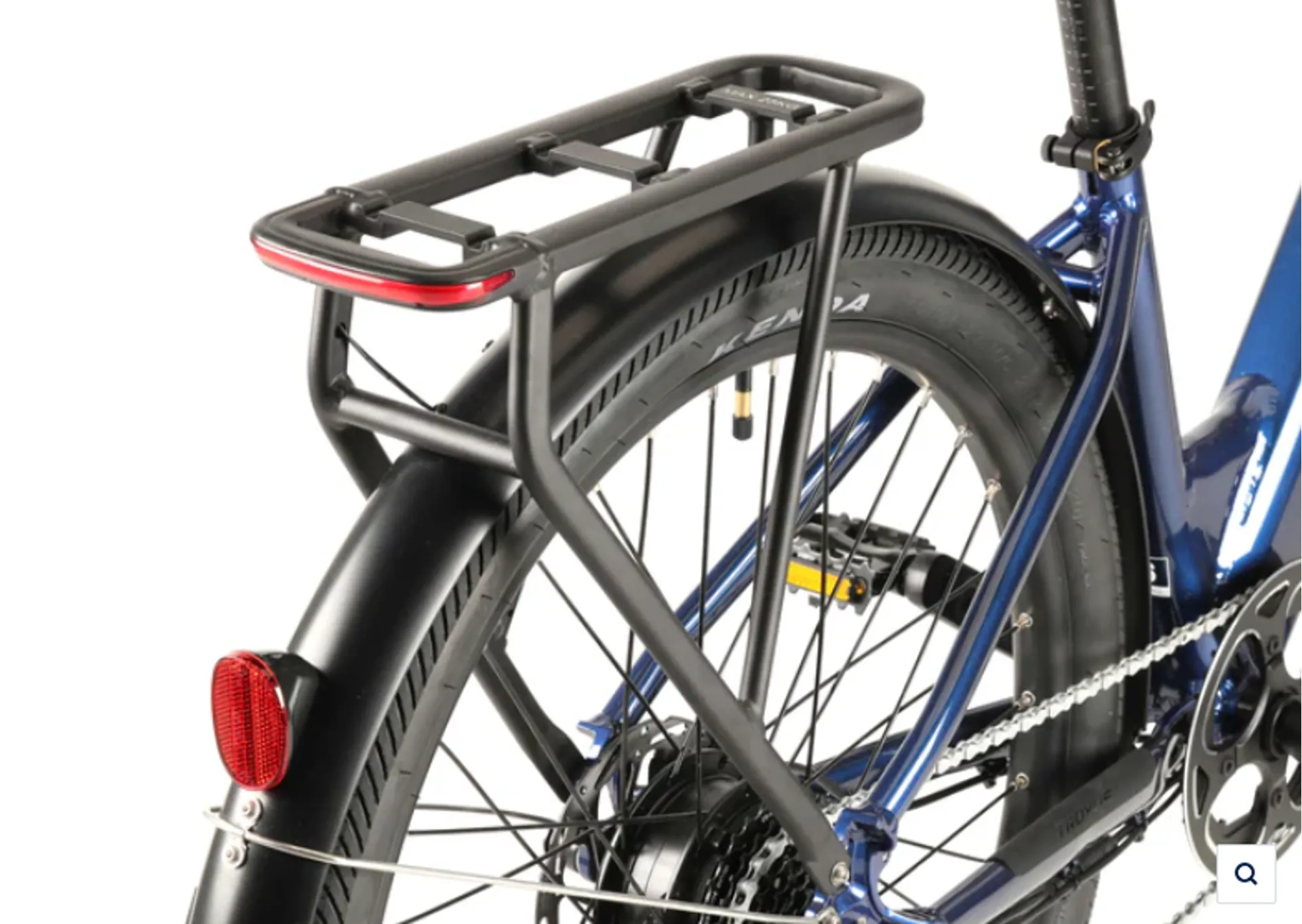

Integrated Rear Rack
Seamless tail light integrated into the back of rack.

6061 Aluminum Frame
Step-thru frame with beautiful smooth-welds and stylish design.


https://www.troxusmobility.com/cdn/shop/videos/c/vp/f1f4eb38f81649bbbdc66c741bfda7b1/f1f4eb38f81649bbbdc66c741bfda7b1.HD-1080p-7.2Mbps-26676313.mp4?v=0
Technical Information
Motor - Jiabo 48V/350W Hub-Drive Motor, 50Nm Max. Torque
Battery - UL2771 Lithium Ion, 48V/10Ah (480Wh), Samsung

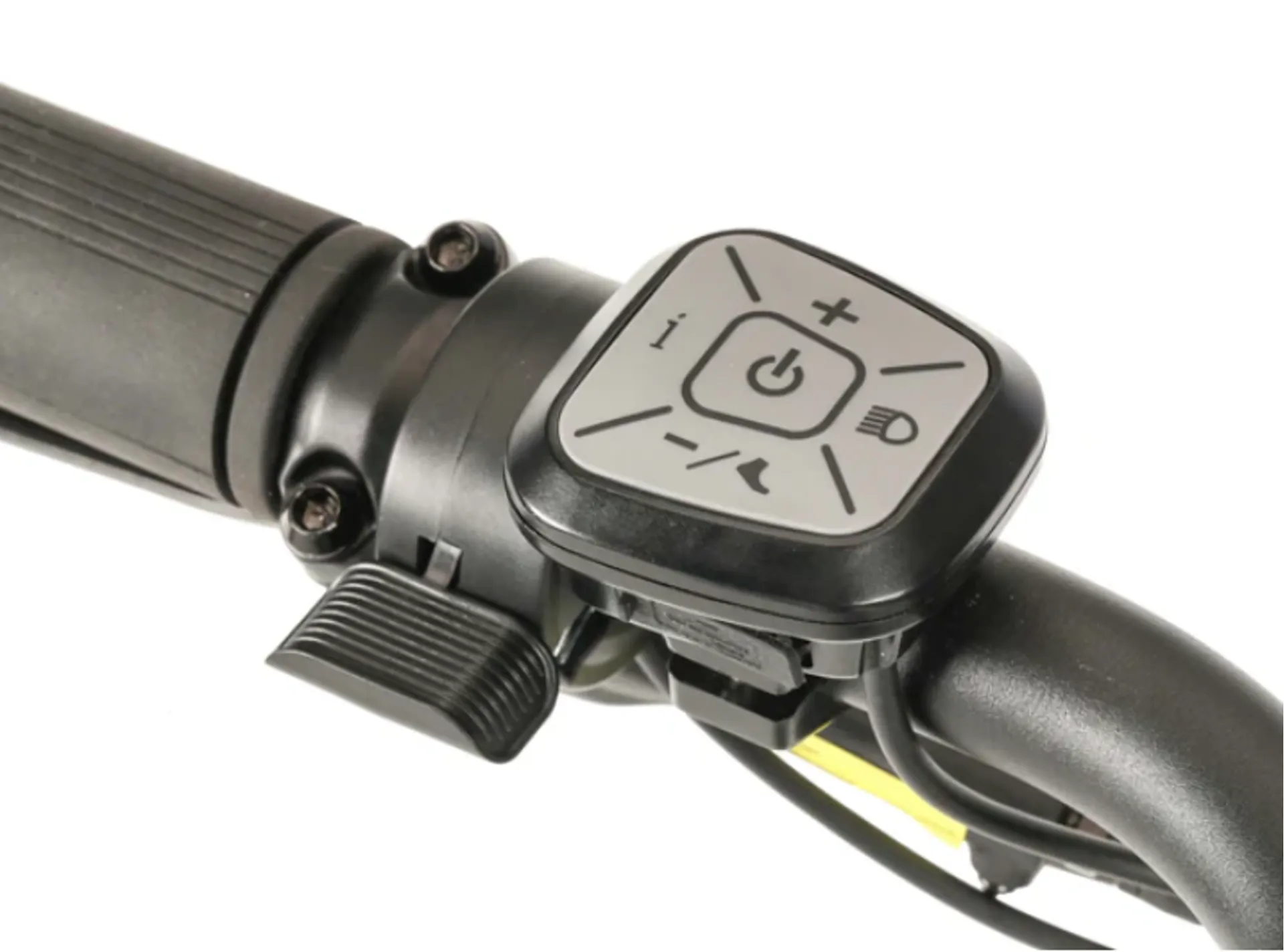

Display - Color Display, Bluetooth, w/Multi-Function Remote & USB Charging
Throttle - Thumb Throttle on Handlebar

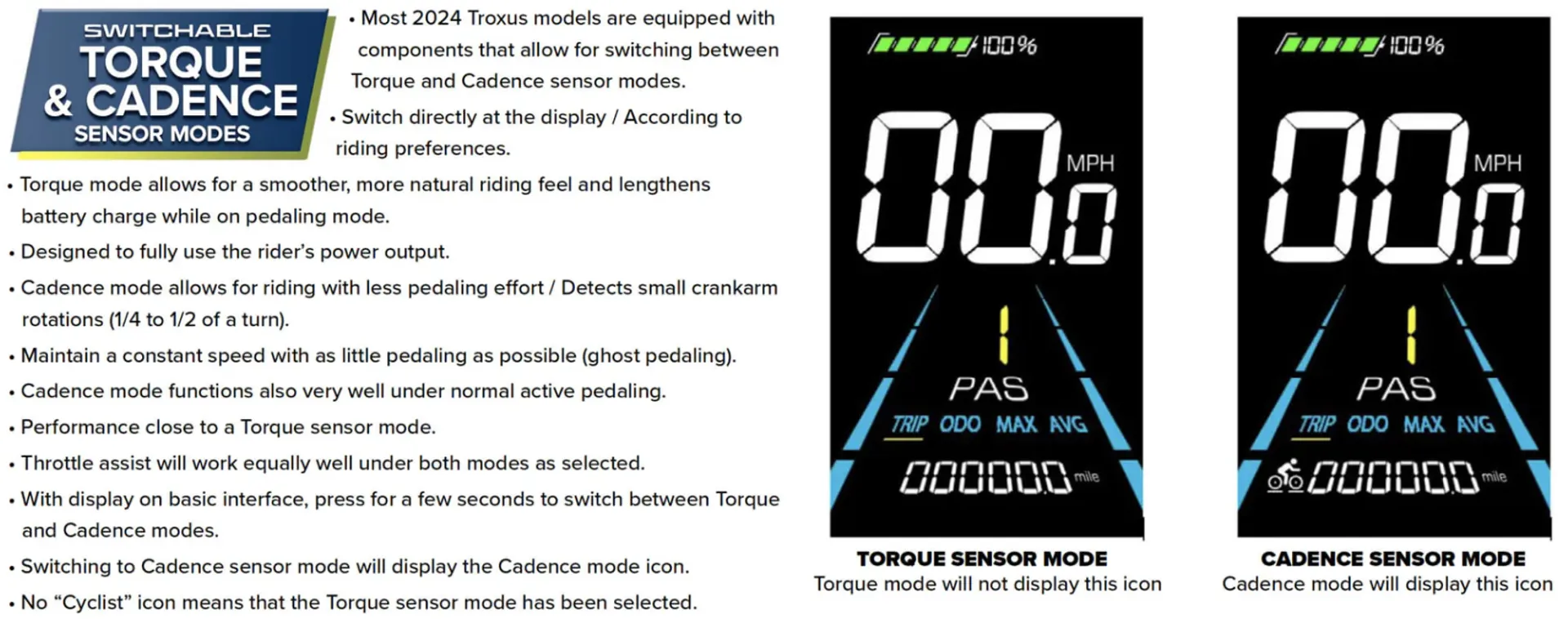

Sensor - Switchable Torque And Cadence Sensor Modes
Pedal Assist - 0-5 Level Pedal Assist
Charger - 2A/10-240V Input / 54.6V Output
Lights - Front & Rear Lights
Controller - 48Vx15A/12V

Frame - 6061-T6 Aluminum Step-Thru Lightweight Frame
Fork - Front Suspension Fork, 73mm Travel
Chain - KMC® 1/2"x3/32"
Crankset - Aluminum, 42T, w/ Alloy Chainring & Single Chainguard, Square Taper, 170mm

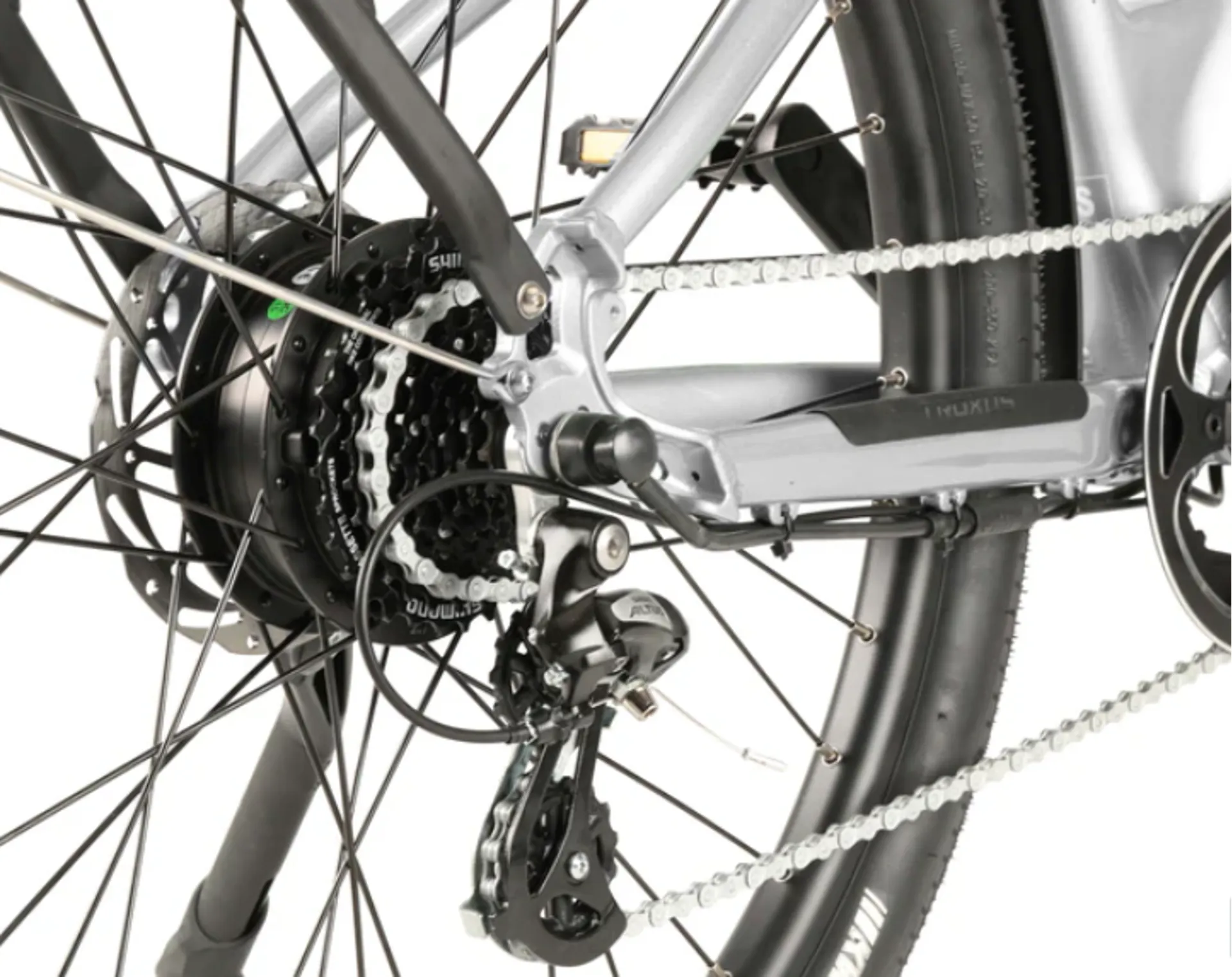

Rear Derailleur - Shimano® RD-M310-L, Altus, 8-Speed
Cassette - Shimano 8-Speed, 12-32T
Shifter - Shimano 8-Speed
Bottom Bracket Set - Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires - Kenda 27.5"x2.2"
Front Hub - Alloy, 36H, 100mm, 3/8" Axle
Rear Hub - Jiabo 48V 350W/20MPH, 50Nm
Rims - Alloy Double Wall, 27.5"x2.0" w/Eyelets
Spokes - Stainless 14G. Front / 13G. Rear
Brakes - Tektro Hydraulic with Brake Cut-Off Sensors
Rotors - Tektro 180mm/180mm

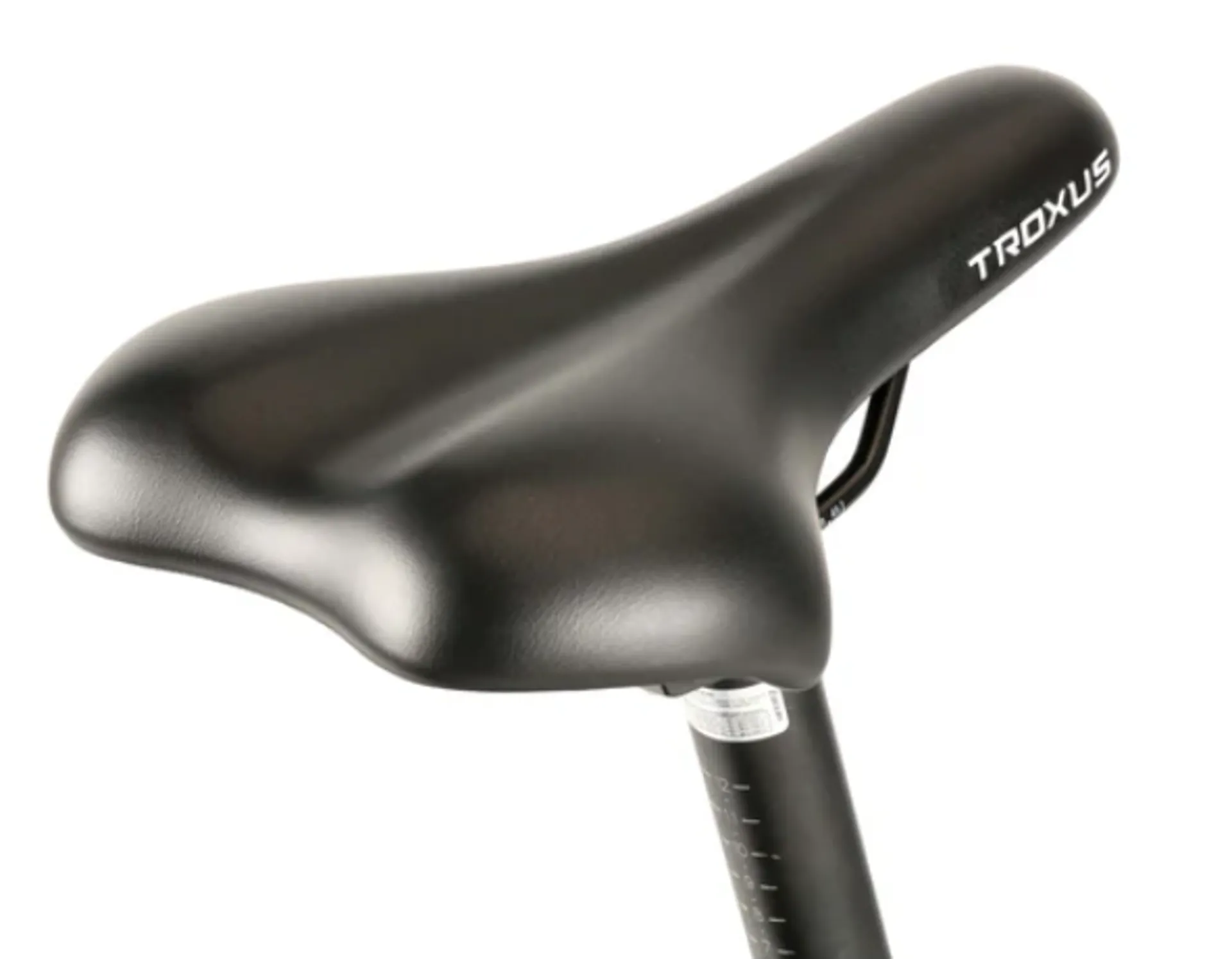

Saddle - Troxus Comfort / Lightweight
Seat-Post - Alloy, 30.4x400mm, Adjustable
Seat-Post Clamp - Alloy 35mm w/Quick Release

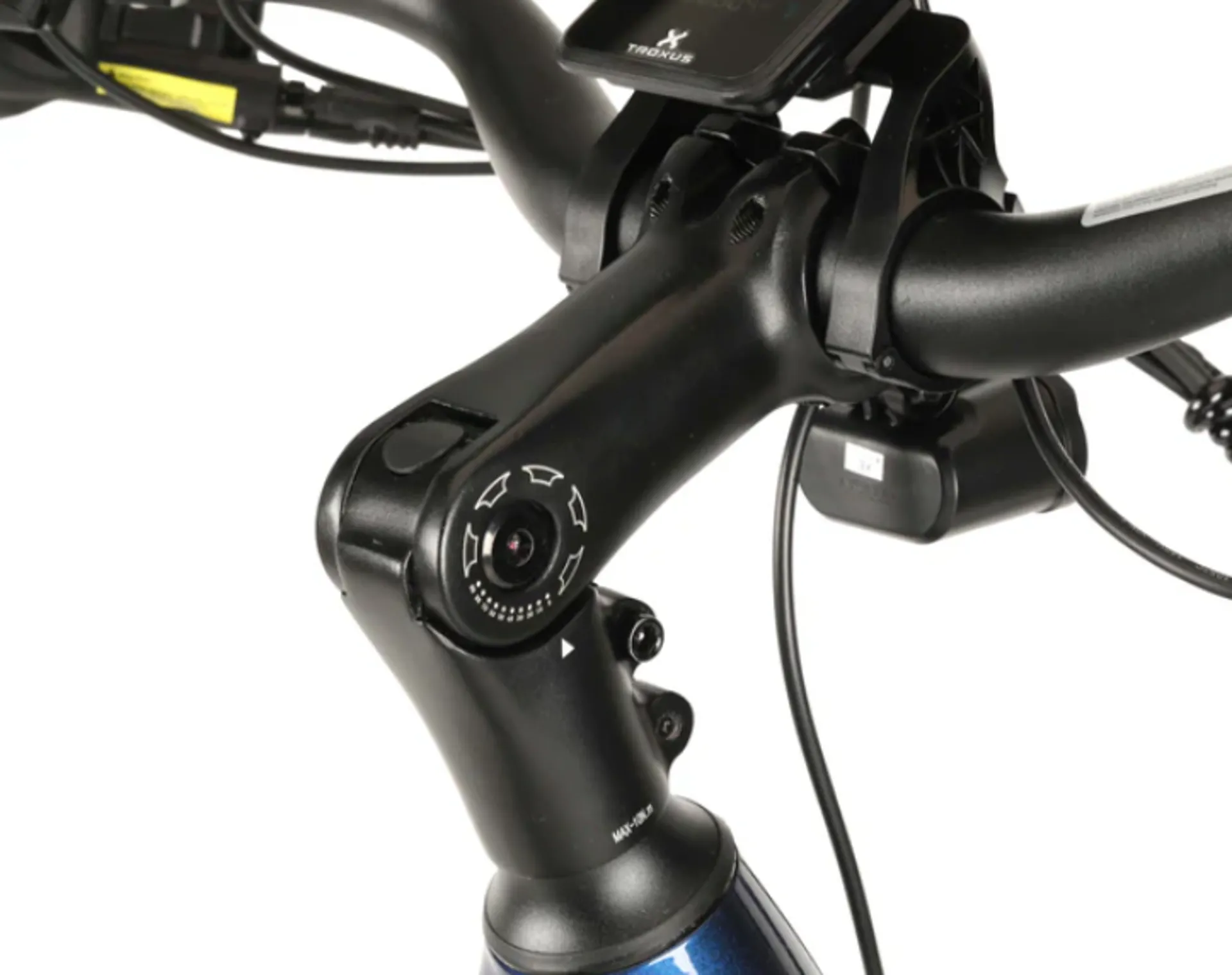

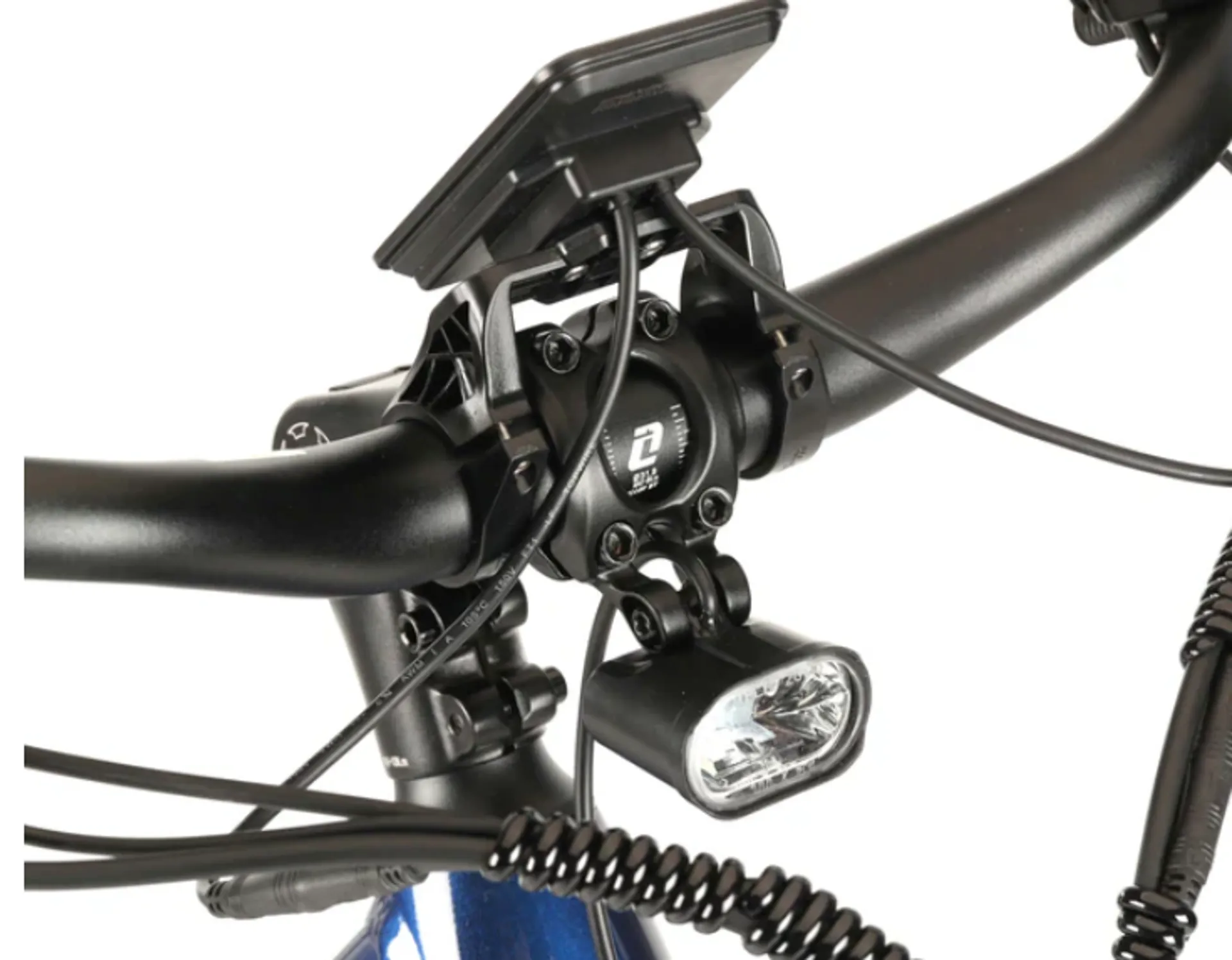

Stem - Zoom Alloy, Forged, Adjustable, Ext. 90mm
Handlebar - Zoom Alloy, 31.8mmx700mm Wide, 35 Degree Backsweep
Grips - Ergonomic Comfort
Pedals - 9/16" Alloy Platform with Reflectors
Headset - THreadless, Locking Internal 1-1/8"

Max Speed - Up To 20 MPH
Range - Up To 55 Miles Per Charge
Weight Limit - Maximum Load: 300 lbs
Net Weight - 57 lbs

Rack - Alloy Rear Model
Fenders - Lightweight 27.5"
Kickstand - Adjustable Side Kickstand
Packaged - All above Accessories are included
Sizing Information
Recommend Height
Small: 5'0" - 5'7"
Medium: 5'7" - 6'3"


Model - Step-Thru
Frame Size - Small / 15.5"
Wheel Size - 27.5"x2.2"
A - Seat Tube Length: 394mm
B - Seat Tube Angle: 72.5°
C - Head Tube Length: 150mm
D - Head Tube Angle: 68°
E - Effective Top Tube Length: 611mm
F - Bottom Bracket Height: 291mm
G - Bottom Bracket Drop: 60"
H - Chainstay Length: 455mm
I - Fork Offset: 44mm
J - Wheelbase: 1,143mm
K - Frame Reach: 410mm
L - Frame Stack: 640
Fork Travel: 65mm
Fork Height: 490mm

Model - Step-Thru
Frame Size - Medium / 17.5"
Wheel Size - 27.5"x2.2"
A - Seat Tube Length: 445mm
B - Seat Tube Angle: 72.5°
C - Head Tube Length: 150mm
D - Head Tube Angle: 68°
E - Effective Top Tube Length: 626mm
F - Bottom Bracket Height: 291mm
G - Bottom Bracket Drop: 60"
H - Chainstay Length: 455mm
I - Fork Offset: 44mm
J - Wheelbase: 1,158mm
K - Frame Reach: 425mm
L - Frame Stack: 640
Fork Travel: 65mm
Fork Height: 490mm
Professional Opinion

Customer Reviews - 5.00 out of 5

07/09/2024 -Susan Hawkins - Great Value for the Price
I purchased the Trax Lt from a local dealer. There are a ton of eBikes out there and it's hard to choose the right one. This dealer had just taken on the line and had not sold one yet. I went in initially to check out the Aventon.

After driving the Aventon, he showed me the new Troxus and suggested that I try it out. I immediately liked it as well, if not better than the Aventon. After seeing the features of the Troxus, I elected to purchase it.

So far, I have been on one 20 mile ride with it and I really like it.
1. It seems to be well built, the gears shift smoothly (8 speed)
2. The hub motor is quiet
3. The PAS is responsive
3. I like the large display that gives you a lot of information.
4. I like the feature of being able to adjust the handlebar.
5. I like the 5 year warranty on most of the items on the bike.

The things I don't like are
1. The display screen is hard to see in bright sunlight.
2. The seat is awful (I replaced it immediately).

So far other than those 2 minor complaints, I am very pleased with this bike. I would definitetly recommend it.


06/12/2024 - Robert b. - Great bike
This is a great bike, I did not know much about e-bikes before purchasing this one but it has everything I need. I love all the features and performs well. I would highly recommend this bike.


05/31/2024 - Nigel Wilde - A Commuter's Dream
I recently purchased this bike, and I must say, it has exceeded my expectations in every way possible. Bought it one week, beautiful ebike that works perfectly for speed and motor, beyond all expectations to have it.
