Explorer - Your Adventure Partner. Troxus Explorer series e-bikes equipped with durable fat tires and a sturdy frame provide more stability and traction over rough terrain like snow, sand, and mud.
Explorer - Your Adventure Partner. Troxus Explorer series e-bikes equipped with durable fat tires and a sturdy frame provide more stability and traction over rough terrain like snow, sand, and mud.
Troxus

Troxus Explorer Plus Step-Thru Black

$2,099.00
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Shipping & Collection Dates

Estimated Shipping & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Shipping & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

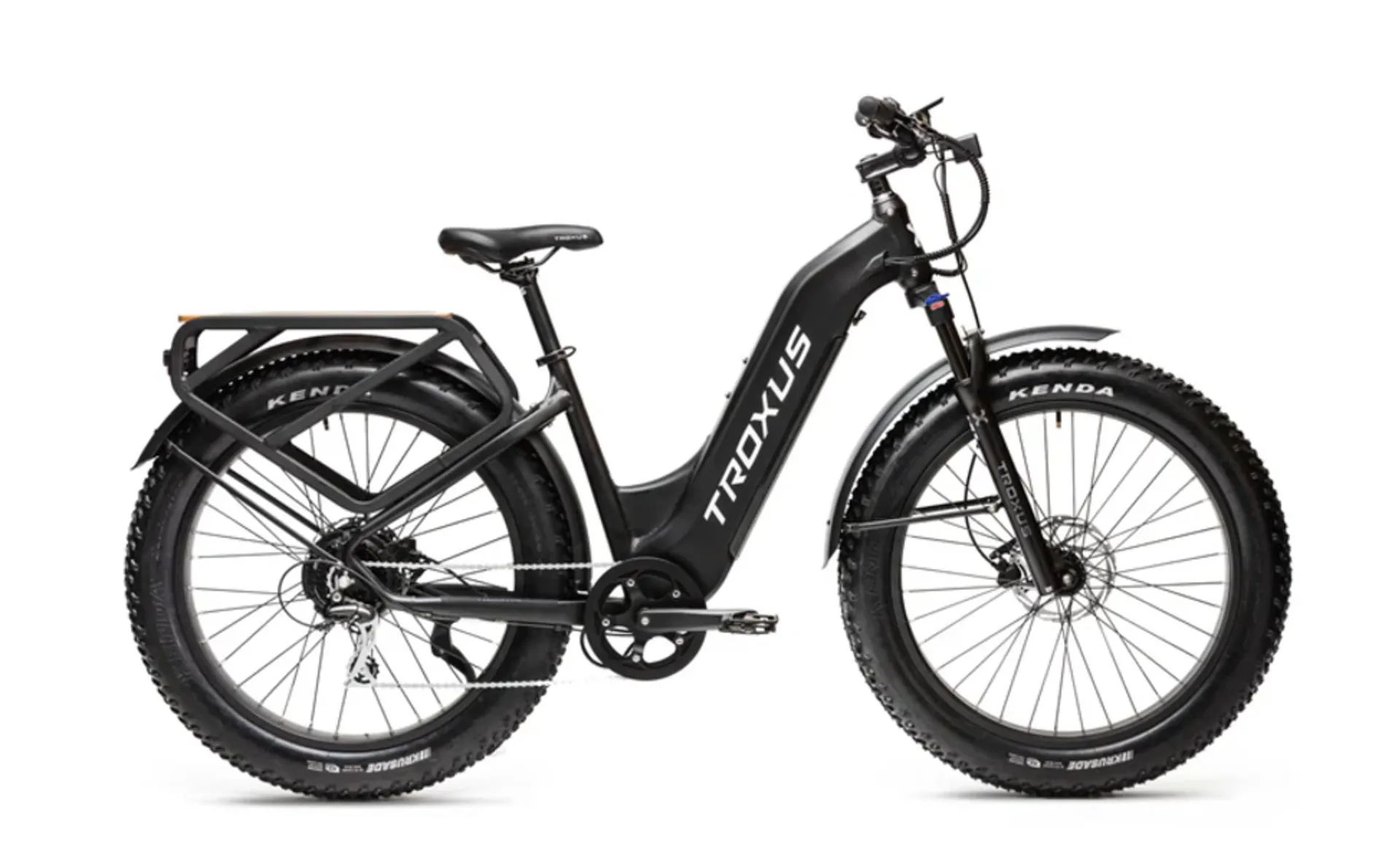

Troxus Explorer Plus Step-Thru Black

Season:2024

Brand:Troxus

Code:10870100220black

Explorer - Your Adventure Partner
Life is meant to be explored. Troxus Explorer series e-bikes equipped with durable fat tires and a sturdy aluminum alloy frame provide more stability and traction over rough terrain like snow, sand, and mud.
And with the 48V 20A high-power SAMSUNG battery, Explorer has enough power to ride and explore further.
troxus ebike

Customer Reviews - 4.94 out of 5 - Based on 116 reviews

REAL WORLD TESTING ON THROTTLE
SPEED:Up to 20MPH
RANGE:36 Miles Without Pedaling

ON PEDAL ASSIST
PAS LEVEL 1 SPEED: 10MPH RANGE: 65Miles
PAS LEVEL 2 SPEED: 15MPH RANGE: 60Miles
PAS LEVEL 3 SPEED: 20MPH RANGE: 38Miles
PAS LEVEL 4 SPEED: 23MPH RANGE: 36Miles
PAS LEVEL 5 SPEED: 28MPH RANGE: 34Miles
Speed & Range testing was calculated using a rider weight of 180lbs on 80% flat terrain
Technical Information
SPECIFICATIONS
MOTOR - Bafang 48V750WHubmotor
THROTTLE -Throttle on demand-throttle from a complete stop
BRAKES - Tektro Hydraulic disc brake, 180mm Rotors
SPEED -Up to 20MPH on Throttle and up to 28MPH on Pedal Assist
BATTERY - Removable Internal Lithium-ion 48V, 20Ah (960Wh) with Samsung cells
SENSORS -Speed sensor
PEDAL ASSIST -5 Levels
RANGE - 30 to 62 Miles
FRAME - 6061 Aluminium alloy
FORK - Aluminum Alloy, Suspension Fork
WEIGHT
- Net Weight: 81.57LB & Gross Weight: 101.41LB
TIRES - 26" x 4.0" Kenda Tires
DISPLAY -
L401 LCD
CHARGER - 54.6V 3A
WEIGHT LIMIT - Standard Weight Limit 275 LBS & Maximum Weight Limit - 353 LBS
KICKSTAND - Included, Rear Mount
BOTTOM BRACKET - Square Taper, Sealed
CRANKSET - 170mm w/46T
REAR DERAILLEUR - Shimano 8 Speed
CASSETTE - 12-32T, 8 Speed Cassette
SHIFT LEVER - 8 Speed
PEDALS - 9/16'' Alloy Platform
CHAIN - KMC Z8.3
RIM - Front: Single Wall Aluminum 36h & Rear: Double Wall Aluminum 36h
SPOKES - Front wheel: black stainless 13 Gauge & Rear wheel: black stainless 12 Gauge
TUBES - Butyl Rubber
HUBS - Nutted Front andRear
SADDLE - Troxus
SEATPOST - Forged Alloy, 30.9*350mm, 2 Bolt Clamp
STEM - Threadless, 28.6mm, 7 Degree Rise
SEAT CLAMP - Quick Release
HANDLEBARS - Aluminum 31.8mm, 700mm
HEADSET - GINEYEA Sealed Bearing Headset
GRIPS - Ergonomic Comfort
Sizing Information
Best FitFor Height:5'4"-6'10"
Best Fit Height For : 5’11”-6’4”

GEOMETRY
geometry
Frame SizeStandard (mm)
Wheel size26"*4.0
A ─ Seat tube480
B ─ Seat tube angle71.0°
C ─ Head tube length140
D ─ Head angle69°
E ─ Effective top tube595
F ─ Bottom bracket height296
G ─ Bottom bracket drop70
H ─ Chainstay length490
I ─ Offset46
J ─ Wheelbase1159.3
K ─ Frame Reach395
L ─ Frame Stack625.2
Professional Opinion
Powerful Bafang 750W Motor
Troxus Explorer series fat tire E-bikes are equipped with the globally recognized BAFANG hub motor. This powerful 750W brushless motor efficiently delivers speeds up to 28MPH with pedal assist. You can enjoy your explorations with increased stability and smoothness throughout the rear hub’s power range.750W Bafang Motortroxus

48V 20A Lithium-ion Battery withSAMSUNG Cells
The Troxus Explorer series supports your long-distance needs with a high capacity battery. SAMSUNG lithium battery cells provide 60+ miles of range per charge, allowing you to discover more and ride further. These batteries are rigorously tested and are waterproof, so that they can reliably perform in any kind of weather- rain or shine.
Safety Tests Performed: Thermal Test - Impact Test - Overcharge Test -Forced Discharge Test - Shock Test -Vibration Test
Affiliates
26" x 4.0" Kenda All-Terrain Fat Tiresreach compliant
Troxus Explorer uses specifically designed e-bike fat tires made of extra-elastic rubber with lower pressure for great shock and vibration absorbency. They also provide excellent grip and easily shed mud, dirt, and sand. No matter whether you are riding in the Rocky Mountains or through the soft leafy litter of Yellowstone Park, or in which weather, you can ride without hesitation.
26*4.0 Kenda All-Terrain Fat Tires
troxus

Tektro Hydraulic Disc Brakes
With a dual-diameter opposed piston design, these powerful hydraulic disc brakes have an increased contact area, providing excellent control and confidence in all conditions.
Tektro Hydraulic Disc Brake

REAL WORLD TESTING
ON THROTTLE
SPEED: Up to 20MPH
RANGE: 36 MilesWithout Pedaling

ON PEDAL ASSIST
PAS LEVEL - 1 | SPEED: 10MPH | RANGE: 65Miles
PAS LEVEL - 2 | SPEED: 15MPH | RANGE: 60Miles
PAS LEVEL - 3 | SPEED: 20MPH | RANGE: 38Miles
PAS LEVEL - 4 | SPEED: 23MPH | RANGE: 36Miles
PAS LEVEL - 5 | SPEED: 28MPH | RANGE: 34Miles
Speed & Range testing was calculated using a rider weight of 180lbs on 80% flat terrain
