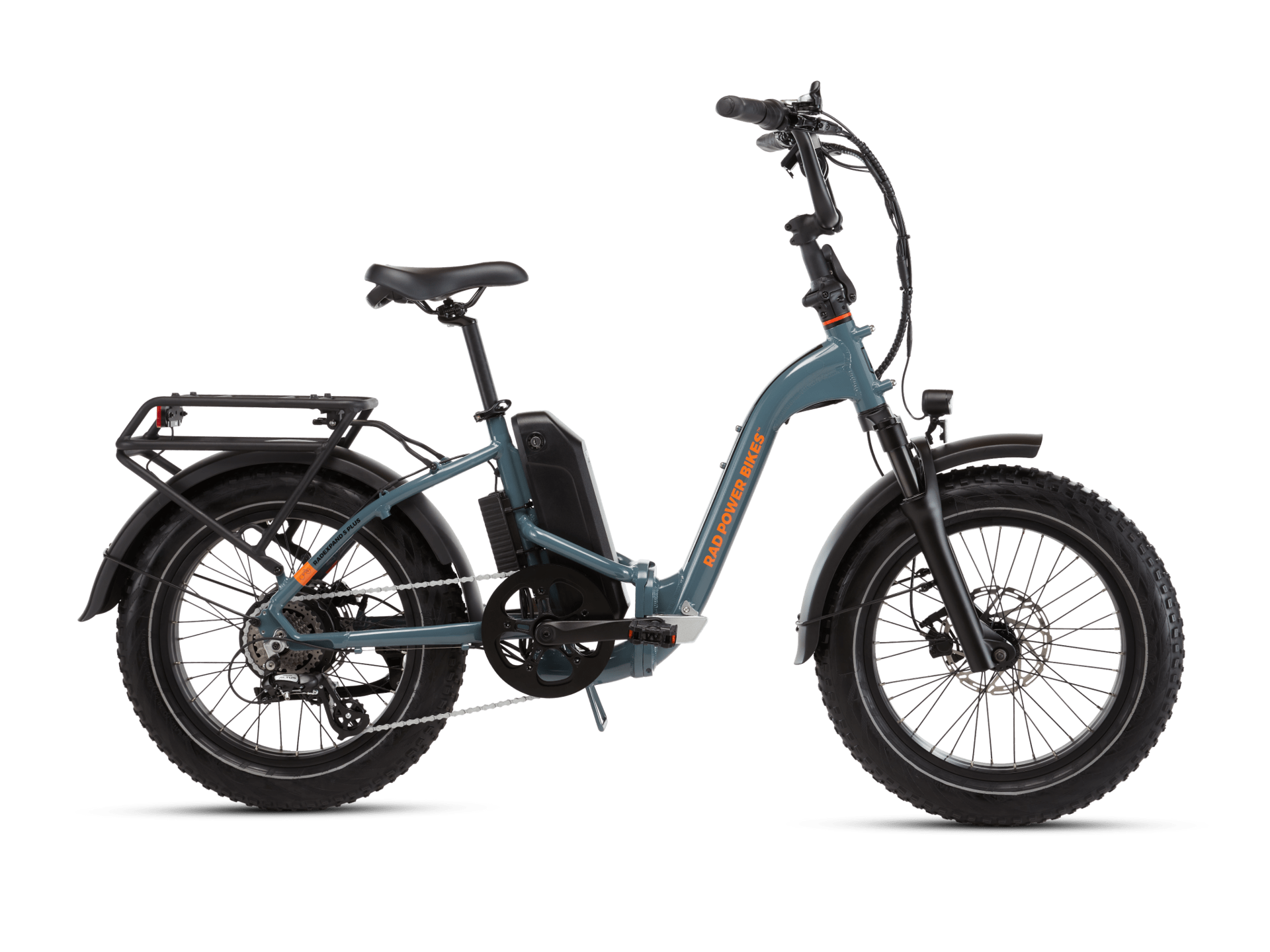

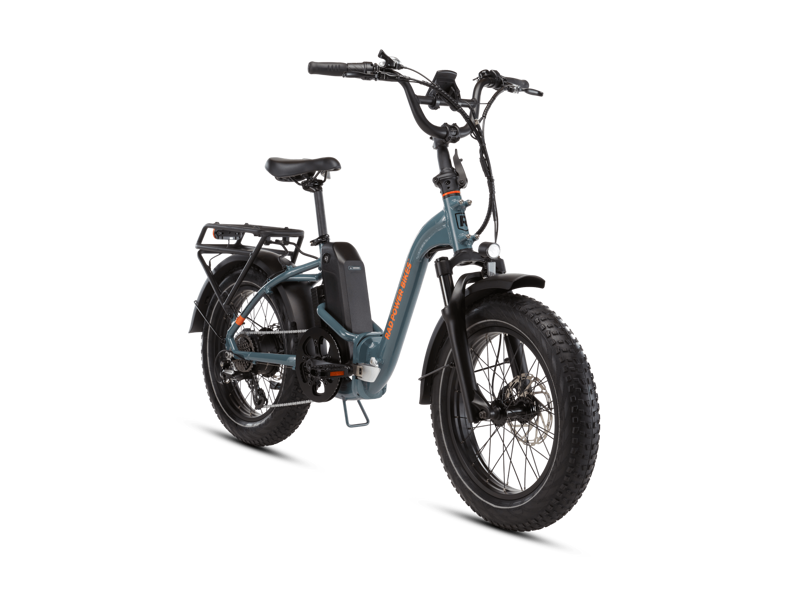

Rad Power RadExpand 5 Plus Electric Folding Bike in Slate Blue

Brand:Rad Power

Code:XX103-00056XX

Rad Power Bikes have taken the classic RadExpand folding bike and enhanced it with all-new tech, impressive range, and a collection of features that make it more comfortable, capable, and unique. Tackle tougher terrain with a hydraulic front suspension fork, and enjoy smoother rides wherever you wander with the all-new torque sensor that responds to the way you ride.

Both the electrical system and the batteries on this model are UL Certified to UL-2849 and UL-2271.

To set a new standard for ebike safety, the Safe Shield Battery features thermal-resistant technology, which means that each cell is encapsulated by a unique heat-absorbing resin designed to prevent an accident from escalating.

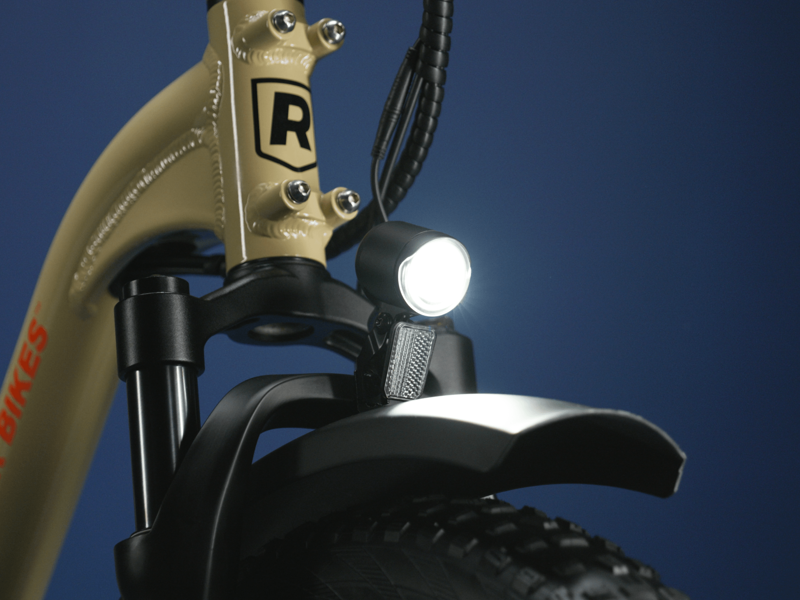

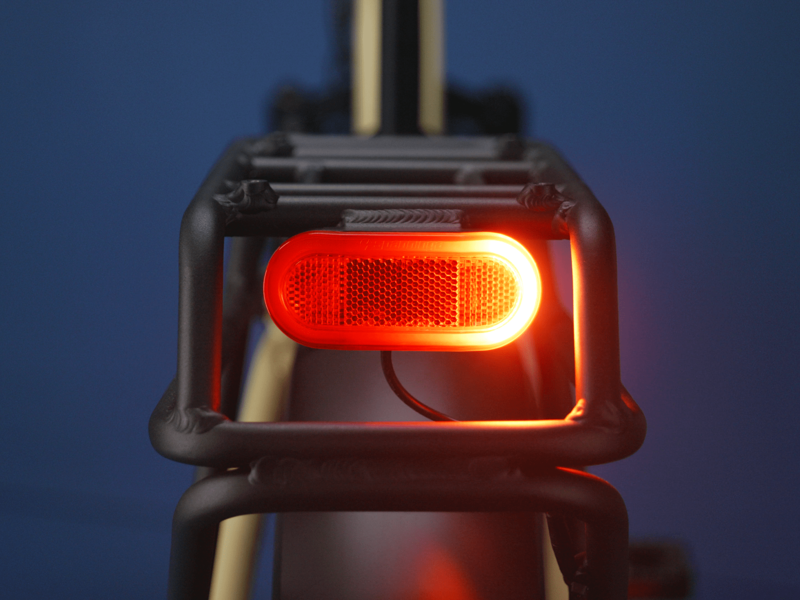

All 2024 models feature a bright 200 lumen headlight for safer night riding and dual turn signals that let cars, pedestrians, and fellow cyclists know your next move.

2024 models are built to handle the rain. With industry-leading IPX6 weather-protection, they can withstand high-pressure, heavy water splashes. And for added safety, they’re equipped with hydraulic disc brakes to ensure all-weather stopping ability.

Technical Information

Category	Specification
Electronics
Battery	15Ah 720 Wh 15Ah Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL certified to UL-2271
Charger	48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
Class	Class switchable between 1 and 2. Ships in Class 2 status.
Display	Rad custom color display. See Display section below for details.
Hub Motor	Rear hub 350W, 64 Nm torque. Manufacturer’s rated power capacity under 750W for ebike regulatory compliance.
Lights	Auto-on feature. Front: ~200 lumens LED headlight with built-in reflector. Rear: Integrated taillight with brake light and turn signals
Pedal Assist	Torque sensor, 5 PAS Levels, plus a zero assist option
Range	Estimated 20-60 miles per charge
Throttle	Half twist throttle
UL Status	UL Certified to UL 2849 and UL 2271
USB Ports	One USB-C port, located on display

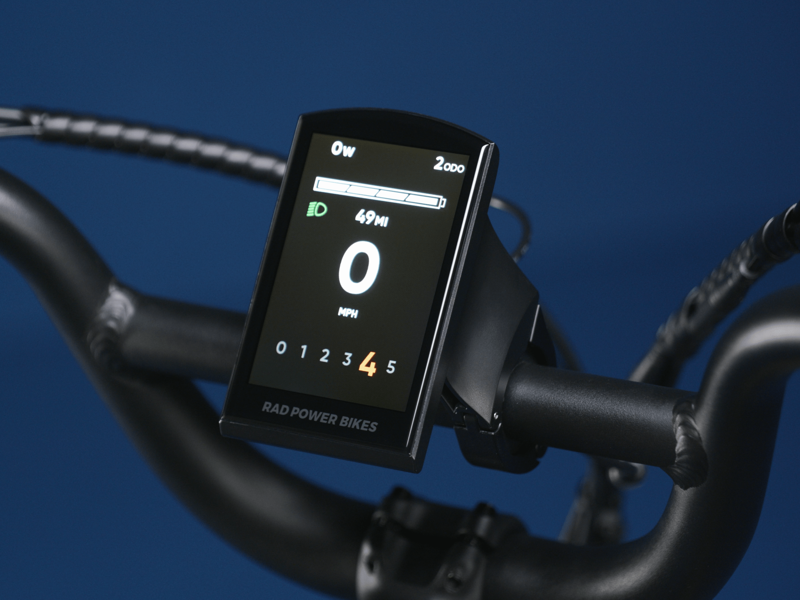

Display
Class level	Choose speed settings for your ride: Class 1: up to 20 mph, throttle only works while pedaling. Class 2: up to 20 mph while pedaling or throttling.
Speedometer	Fast and Curious? The speedometer will tell you your current speed.
Odometer	Track the distance you’ve racked up, either by trip or through the bike’s entire lifespan.
Estimated remaining range	Is it time to recharge? To help you keep track, this displays your remaining battery life in either percentage or remaining miles.
Trip time	Did your trip feel like it was just half an hour, or did time fly by? This display will show you the time you spend on each outing. Be sure to reset your trip odometer before a ride you want to track.
Pedal assist level	The higher the number, the more the motor will boost you when you pedal. This shows what level you’re on, from 0 to 5.
Motor watts	Check out how much power the motor is supplying at any given time.
Headlight, tail light, and rear turn signals	It’s always a bright idea to make sure your lights are on and operating. Note: Rear turn signals can be manually turned off or will turn off automatically two minutes into use.
USB charge indicator	Charging your device? This will confirm if your phone (or tablet, or smartwatch, or headphones, or …) is getting the juice it needs.
Components
Bell	Yes
Brake System	Hydraulic Disc, Gemma GA-1000B
Brake Pads	Gemma Semi-Metallic G2
Brake Rotors	180mm x 2.3mm
Crank Set	48T with dual sided chain ring cover, 170mm crank arms
Derailleur	7 speed Shimano
Fenders	Full coverage front and rear fenders
Fork	Exsho STRONG-C hydraulic suspension fork, 50mm travel, bolt-on axle
Frame	Aluminum
Freewheel/Cassette	7-speed freewheel, 14-32T
Gearing	1x7 speed
Grips	Ergonomic rubber comfort grips
Handlebar	Aluminum, 680 mm wide
Kickstand	Side mounted, adjustable angle kickstand
Pedals	Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading, folding
Rear Rack	Integrated, 59 lb (27 kg) carrying capacity
Saddle	Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides
Seatpost	390 mm x 27.2 mm
Seatpost Clamp	31.8 mm
Shifter	Shimano 7-speed thumb shifter
Stem	Folding stem raiser with 45mm A-Head stem
Tires	CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip

Sizing Information

Geometry

	Measurement
Handlebar Height	43.5" (110.4 cm)
Reach	17.9" (455 mm)
Seat Height	From ground: 31" - 38" (78.7 - 96.5 cm) From pedal bottom stroke: 26" - 33" (66 - 84 cm)
Standover Height	16.5" (41.9 cm)
Stepover Height	16" (40.6 cm)
Total Length	68" (172.7 cm)
Wheelbase	44.5" (113 cm)
Seat Tube Length	14.2" (360 mm)

	Details
Rider Heights	4'10"-5'10" (147-178 cm)
Bike Weight	72.5 lb (32.9 kg), 62.5 lb (28.3 kg) with battery removed
Payload	315 lb, 225 lb max rider weight
Rear Rack Payload	59 lb (27 kg)

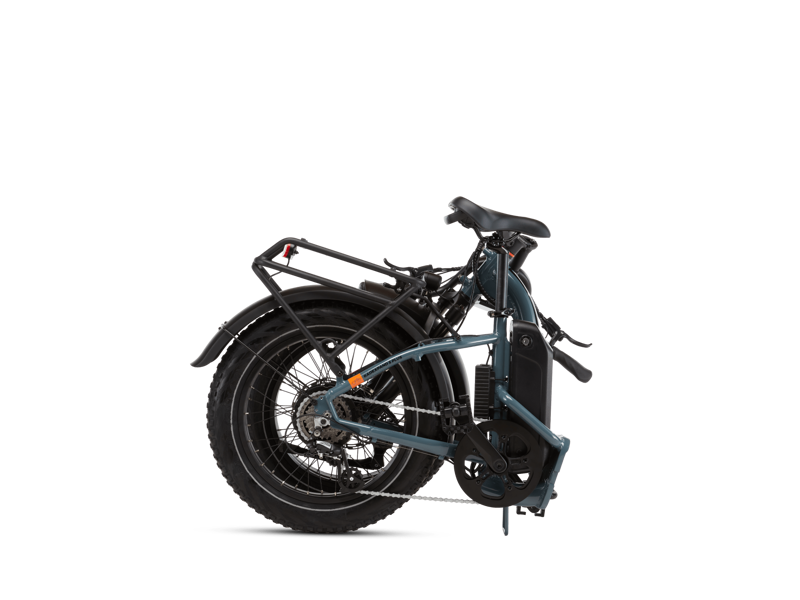

Folded Dimensions	29"H x 25"W x 41"L
Handlebar Height	43.5" (110.4 cm)
Reach	17.9" (455 mm)
Seat Height	From ground: 31" - 38" (78.7 - 96.5 cm) From pedal bottom stroke: 26" - 33" (66 - 84 cm)
