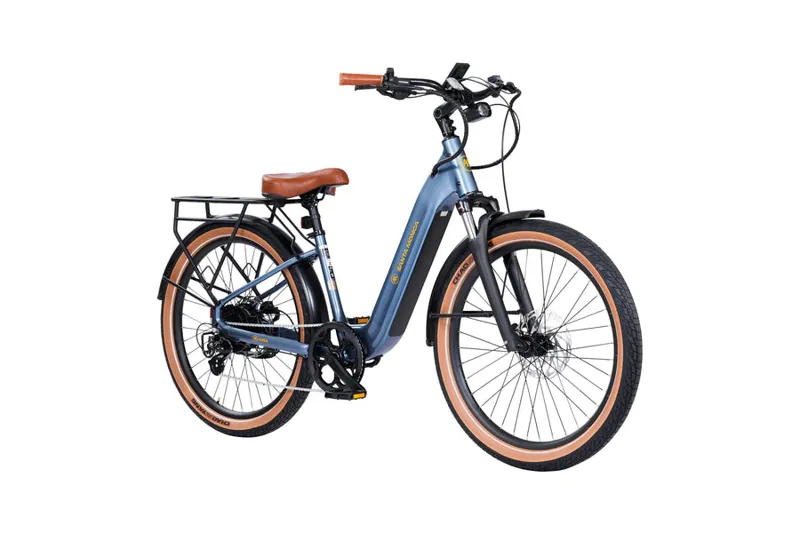

MODEL -Santa Monica
MOTOR -750W (Rated) / 1200W (Peak) , 48V Brushless Rear Hub Motor
THROTTLE -Throttle on Demand
DISPLAY - Color LCD, Smart Easy-to-Read Display with Backlight
SPEED -Up to 20 MPH Pedal Assist, 20 MPH Throttle Only
BATTERY -Removable Internal Lithium-ion 48V, 15Ah (720Wh) with LG M50LT 21700 cells
SENSORS -Torque Sensor
PEDAL ASSIST -5 Levels
CHARGER -48V 3 Amp Fast Charger, about 5 Hours to a Full Charge
RANGE -30 to 60 Miles

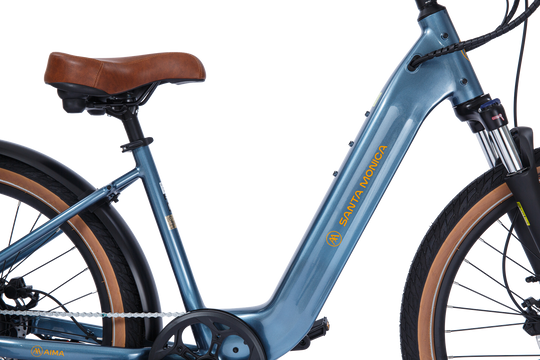

FRAME -6061 Single-Butted Aluminum Alloy Frame with Internal Battery
WEIGHT -64 lbs. ( Battery included)
PEDALS -9/16' Alloy Platform
FORK -SR Suntours Suspension Fork with thru-axel
WEIGHT LIMIT -400 lbs.
KICKSTAND -Included, Aluminum Alloy Kickstand

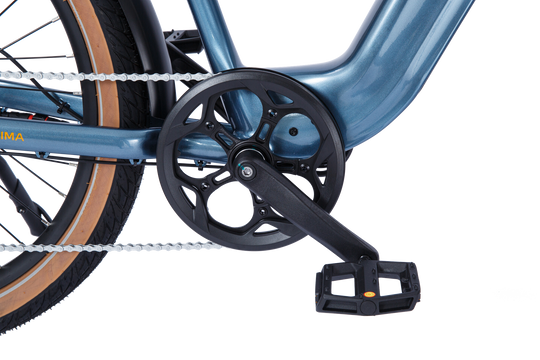

CRANKSET -170mm w/ 52T
SHIFT -Shimano 8 Speed
GEAR RATIO RANGE -11-34T
BRAKES -Tektro Hydraulic Disc Brakes
ROTOR -203 mm
CHAIN -128 Link, 8 Speed
RIM -Double Wall Aluminum Alloy
SPOKES -Black Stainless 12G Front / 12G Rear T
TUBES -Rubber
HUBS -Front Aluminum Alloy Disc Hub
TIRES -27.5" x 2.6"

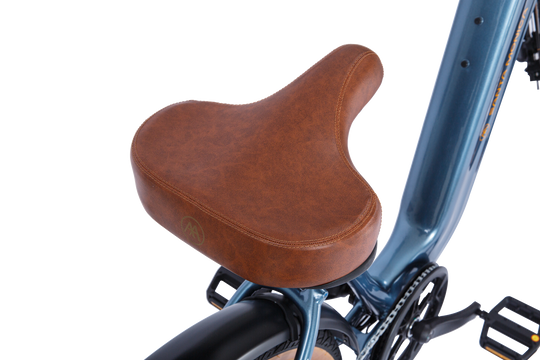

SADDLE -AIMA Comfort, 280mm*270mm Saddle
SEATPOST -Aluminum Alloy, 30.4mm 2-Bolt Clamp
STEM -Threadless, 31.8mm, 10-80 Degree Rise, Ext:S 90mm/M 110mm
SEAT CLAMP -34.9 mm Quick Release
HANDLEBARS -Aluminum Alloy Double Wall, 31.8mm, 680mm
HEADSET -Sealed Bearing Headset
GRIPS -Ergonomic Comfort
The Route 66, A New Frontier in E-Bike Motors
With the launch of our Santa Monica, we needed to do something different, so we asked our friends over at Bafang if they were able to help. Through months of development, they were able to refine their motor design and manufacturing process to create something special, a 750W hub motor, in a small, lightweight shell.
Introducing the all-new Route 66 rear hub motor by Bafang.
Engineered to be compact and ultra-light, the Route 66 is the lightest rear hub motor in its class, pushing out as much power as motors twice its size. Developed exclusively for AIMA, the Route 66 packs 750 Watts of power and 74Nm of torque into a small package.
Inspired by the historic highway, the Route 66 is a pioneer in ebike technology and is ready to take you on your next journey, wherever that road may lead you.
